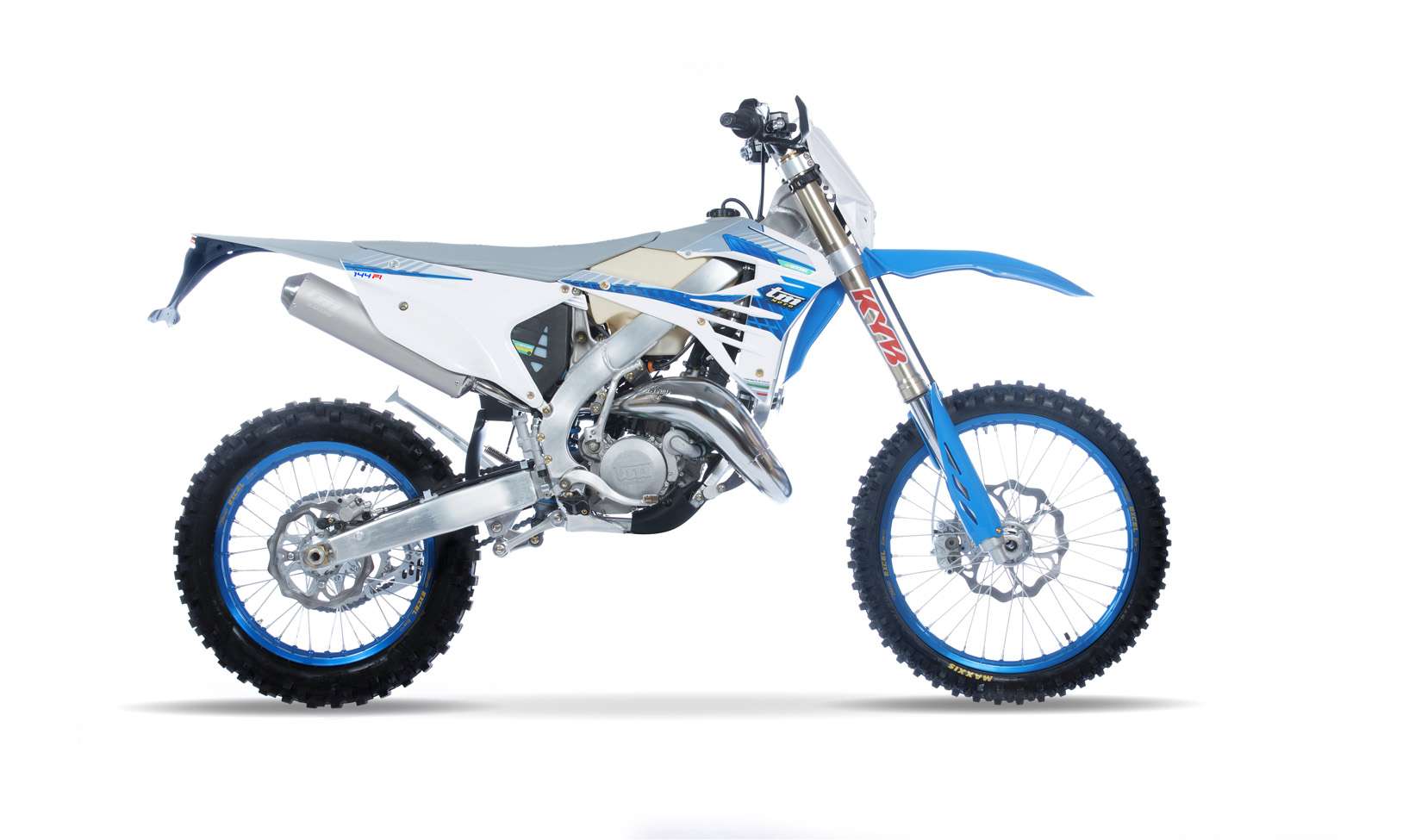

TM EN 144 Fi 2T

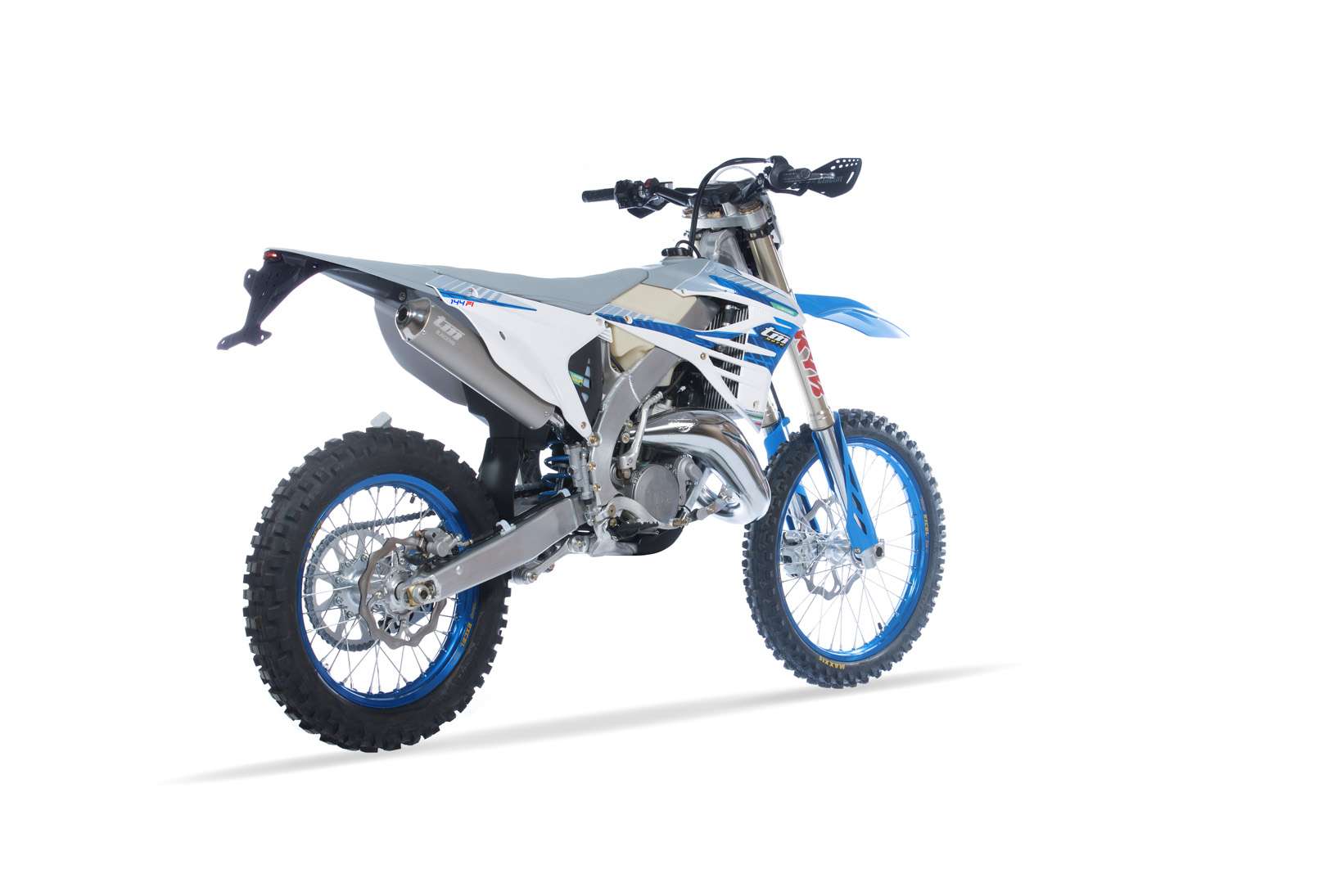

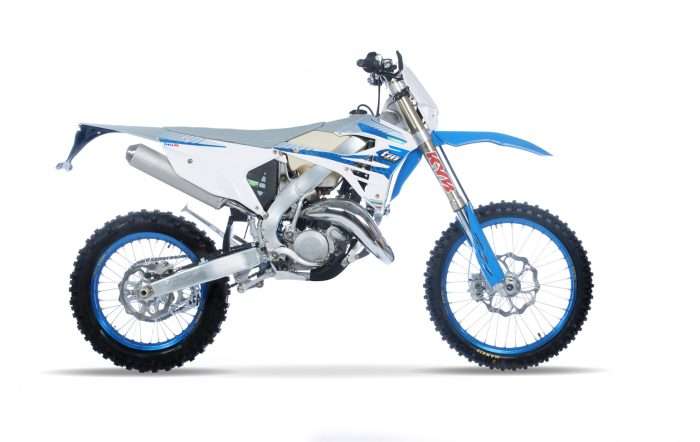

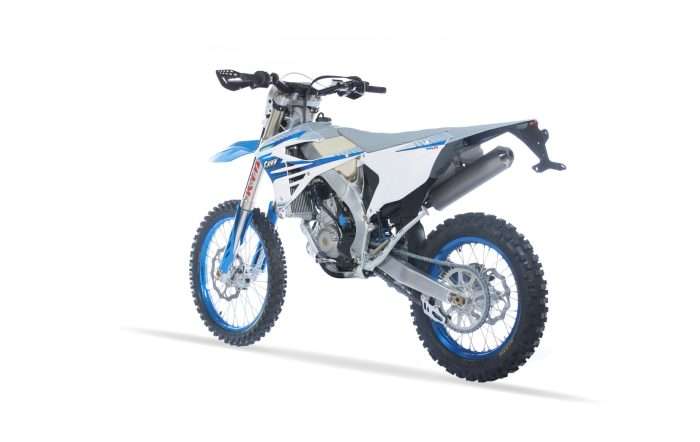

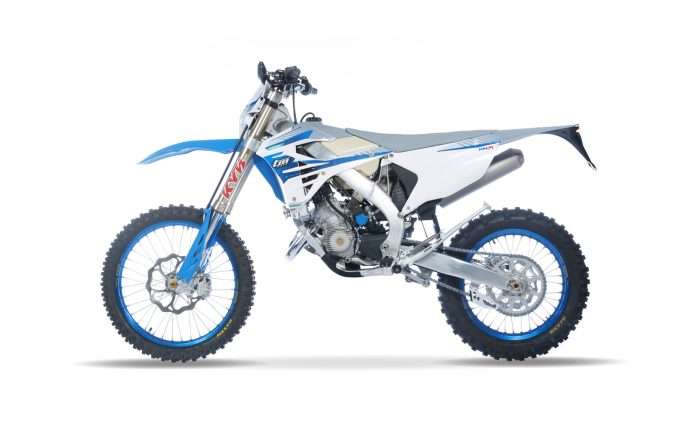

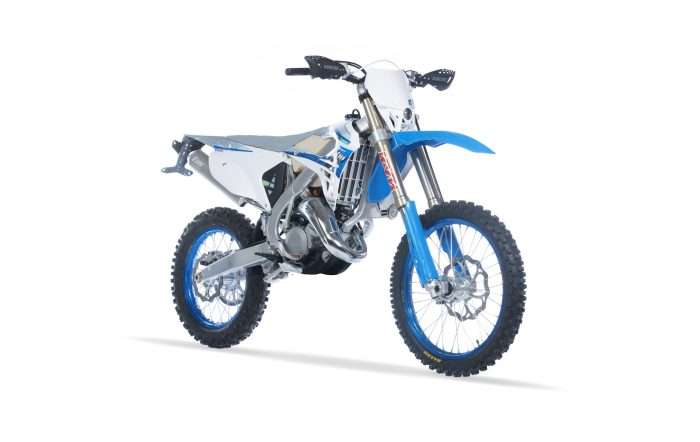

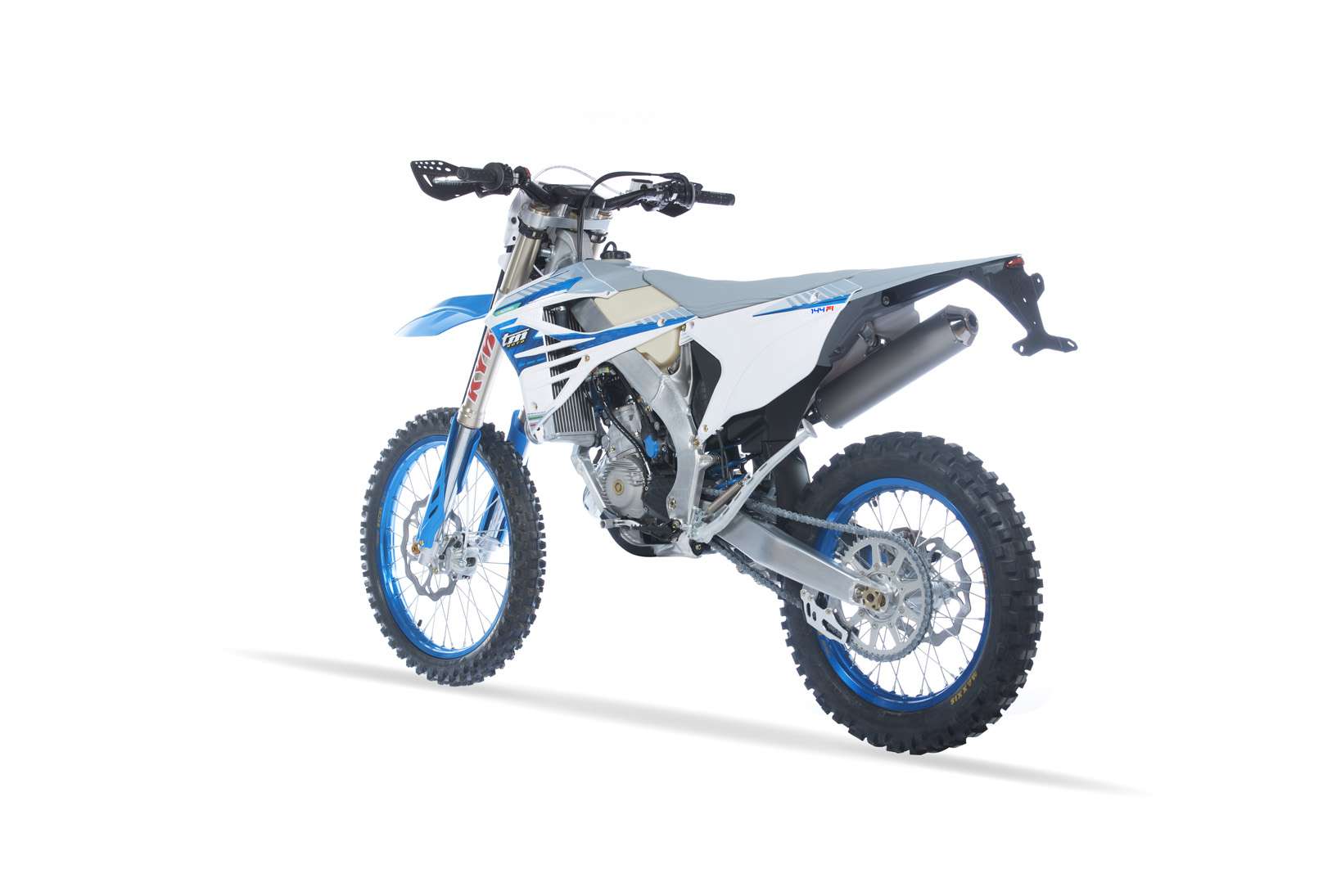

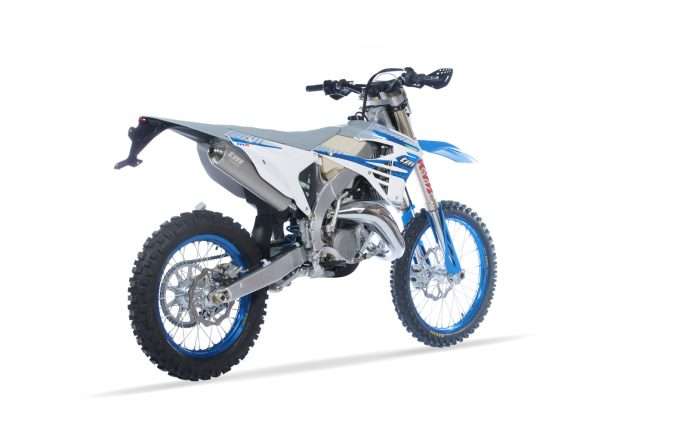

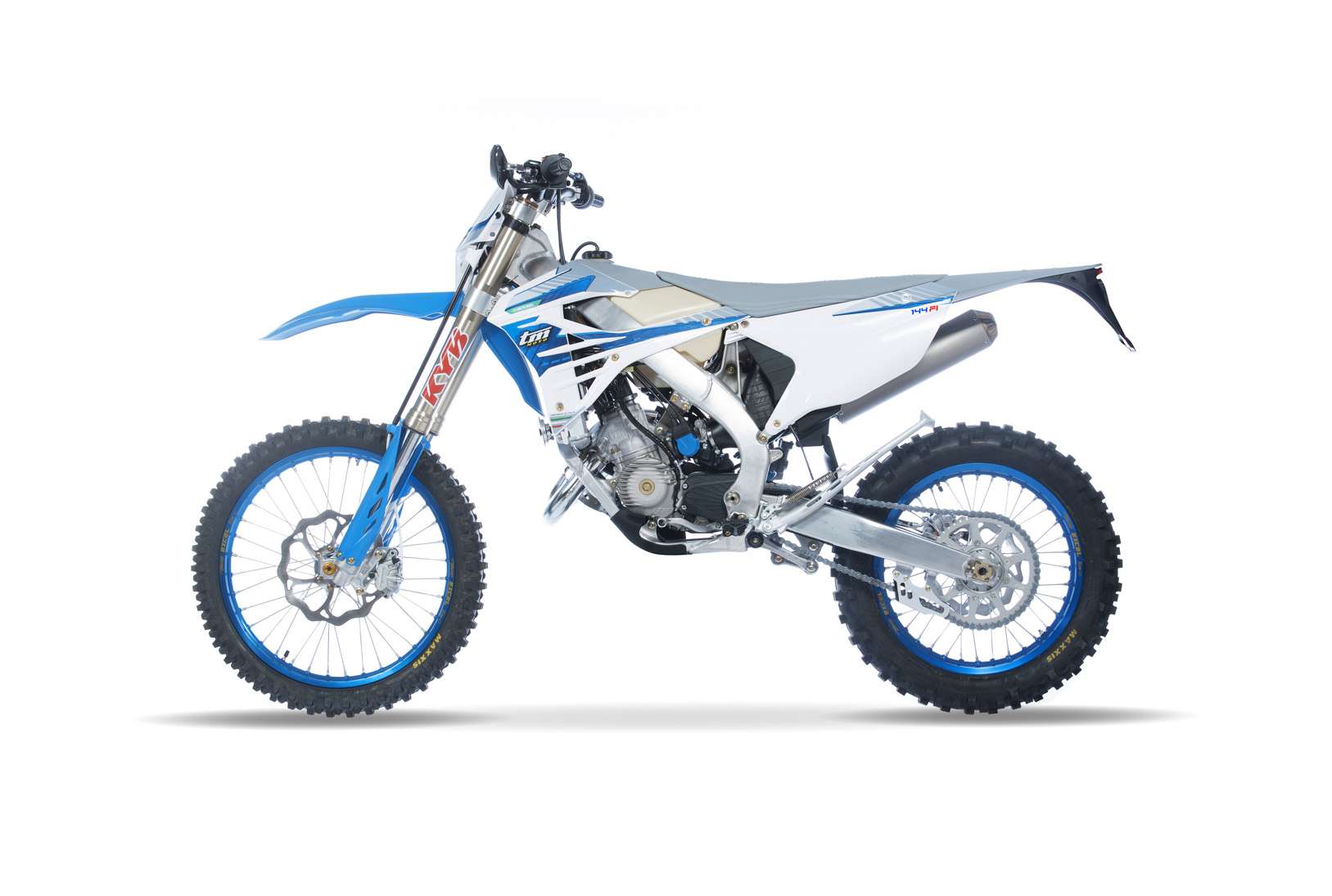

The images of the bikes are for demonstration purposes only, due to storage requirements some details may differ from the image.
TM EN 144 Fi 2T
The images of the bikes are for demonstration purposes only, due to storage requirements some details may differ from the image.
TM EN 144 Fi 2T
The images of the bikes are for demonstration purposes only, due to storage requirements some details may differ from the image.
TECHNICAL DETAILS
TM EN 144 Fi 2T
MOTORE
| CHANGE | 6 marce |
|---|---|
| STARTING | A pedale |
| RUN | 58.2 mm |
| ALESAGE | 56 mm |
| CLUTCH | Oil-bath multi-disc |
| CILINDRATE | 143.3 cm3 |
| ECU | eMoticom |
| CORPO FARFALLATO | TM Racing |
| CARBURATOR | --- |
CICLISTICA
| WEIGHT (WITHOUT GASOLINE) | 96 Kg |
|---|---|
| TANK CAPACITY (APPROX.) | 8.5 Lt / 12 Lt |
| FRONT BRAKE DISK DIAMETER | 270 mm |
| REAR BRAKE DISK DIAMETER | 245 mm |
| FRONT BRAKE CALIPER | Brembo |
| REAR BRAKE CALIPER | Nissin |
| CHAIN | Regina GPX |
| FRAME CONSTRUCTION | Self-tempering aluminium deltabox type single beam with extruded, forged and microcast parts |
| FRONT SUSPENSION | Kayaba Ø 48 mm |
| MINIMUM HEIGHT FROM GROUND | 37 cm |
| REAR SUSPENSION | TM Racing |
| SEAT HEIGHT FROM GROUND | 99 cm |
| STEERING HEAD INCLINATION | 63° |
| FRONT EXCURSION | 310 mm |
| REAR EXCURSION | 300 mm |
