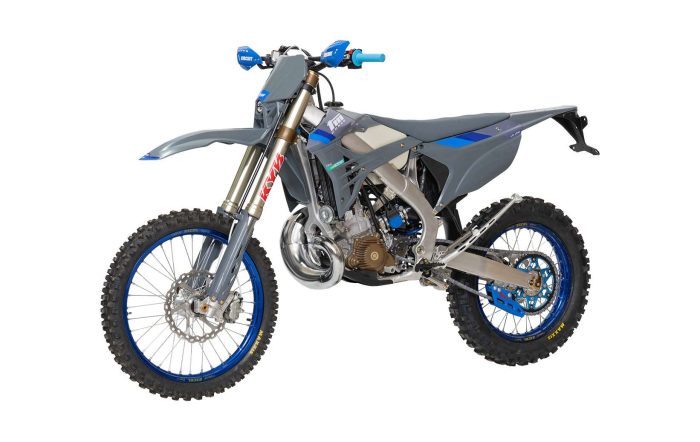

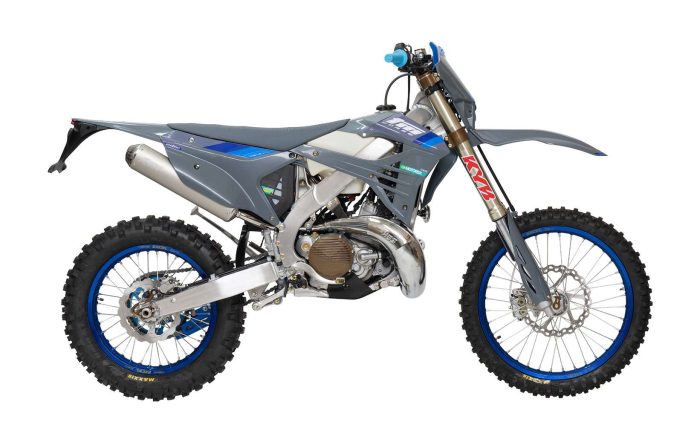

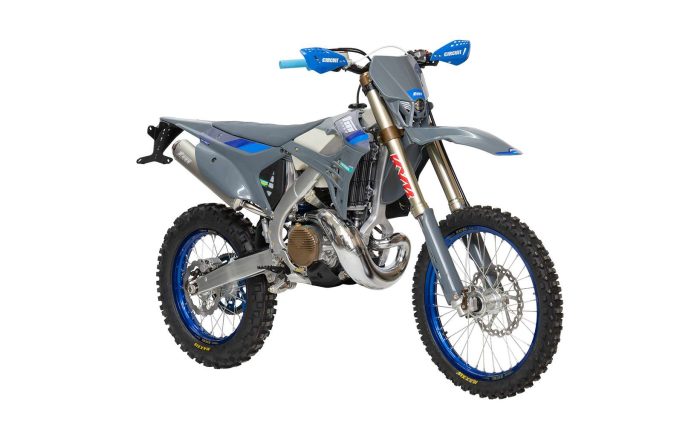

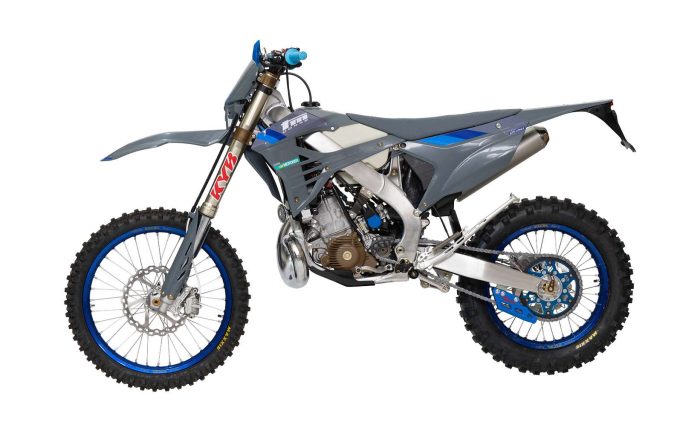

TM EN 250 ES Fi 2T – SPECIAL EDITION CORSE
A motorbike that stands out for the quality of its performance. High-performing particularly thanks to its power to weight ratio.
It is equipped with controllable, linear power delivery.
The experience of our riders, gained on the most important race tracks in the world, has allowed us to faithfully reproduce the feeling and performance of their bikes and make them available to fans.
The images of the bikes are for demonstration purposes only, due to storage requirements some details may differ from the image.
TM EN 250 ES Fi 2T – SPECIAL EDITION CORSE
A motorbike that stands out for the quality of its performance. High-performing particularly thanks to its power to weight ratio.
It is equipped with controllable, linear power delivery.
The experience of our riders, gained on the most important race tracks in the world, has allowed us to faithfully reproduce the feeling and performance of their bikes and make them available to fans.
The images of the bikes are for demonstration purposes only, due to storage requirements some details may differ from the image.
TM EN 250 ES Fi 2T – SPECIAL EDITION CORSE
A motorbike that stands out for the quality of its performance. High-performing particularly thanks to its power to weight ratio.
It is equipped with controllable, linear power delivery.
The experience of our riders, gained on the most important race tracks in the world, has allowed us to faithfully reproduce the feeling and performance of their bikes and make them available to fans.
The images of the bikes are for demonstration purposes only, due to storage requirements some details may differ from the image.
SOLID-CAST PARTS
Never compromise
TM carves its components from a single block, which takes shape under the expert hands of our craftsmen. Maniacal care, genuine passion, absolute quality: this is how we create unique pieces ready for the most extreme challenges.
ABSOLUTE CONTROL
Top-of-the-line suspension
KYB 48mm forks and TM monoshock with a new, more precise setup to absorb shocks and reduce unexpected reactions on the handlebars. The result is an exceptionally well-balanced bike with a uniquely light and precise feel.
ALUMINIUM FRAME
The backbone of the motorbike
Constructed from self-tempering aluminium, its single-beam deltabox architecture is the key to exceptional torsional rigidity, essential for millimetric driving precision. With extruded and forged parts, manufactured to enhance strength and lightness.
TECHNICAL DETAILS
TM EN 250 ES Fi 2T – SPECIAL EDITION CORSE
MOTORE
| CHANGE | 6 marce |
|---|---|
| STARTING | Elettrico |
| RUN | 72 mm |
| ALESAGE | 66.4 mm |
| CLUTCH | Oil-bath multi-disc |
| CILINDRATE | 249.3 cm3 |
| ECU | eMoticom |
| CORPO FARFALLATO | TM Racing |
| CARBURATOR | --- |
CICLISTICA
| WEIGHT (WITHOUT GASOLINE) | 105 Kg |
| TANK CAPACITY (APPROX.) | 8.5 Lt / 12 Lt |
| FRONT BRAKE DISK DIAMETER | 270 mm |
| REAR BRAKE DISK DIAMETER | 240 mm |
| FRONT BRAKE CALIPER | Brembo |
| REAR BRAKE CALIPER | Nissin |
| CHAIN | Regina ZSA |
| FRAME CONSTRUCTION | Self-tempering aluminium deltabox type single beam with extruded, forged and microcast parts |
| FRONT SUSPENSION | Kayaba Ø 48 mm |
| MINIMUM HEIGHT FROM GROUND | 35.5 cm |
| REAR SUSPENSION | TM Racing |
| SEAT HEIGHT FROM GROUND | 98.5 cm |
| STEERING HEAD INCLINATION | 63° |
| FRONT EXCURSION | 310 mm |
| REAR EXCURSION | 300 mm |
The vehicles shown in the images may differ in some details from the production models and mount optional available only for a fee. All information relating to the volume of supply, appearance, services, weights and dimensions are not binding and are specified subject to typographical, compositional and printing errors. In the case of coated surfaces, there may be color differences due to normal process deviations. Subject to change without notice. The consumptions indicated refer to standard vehicles approved for road use at the time of delivery.
