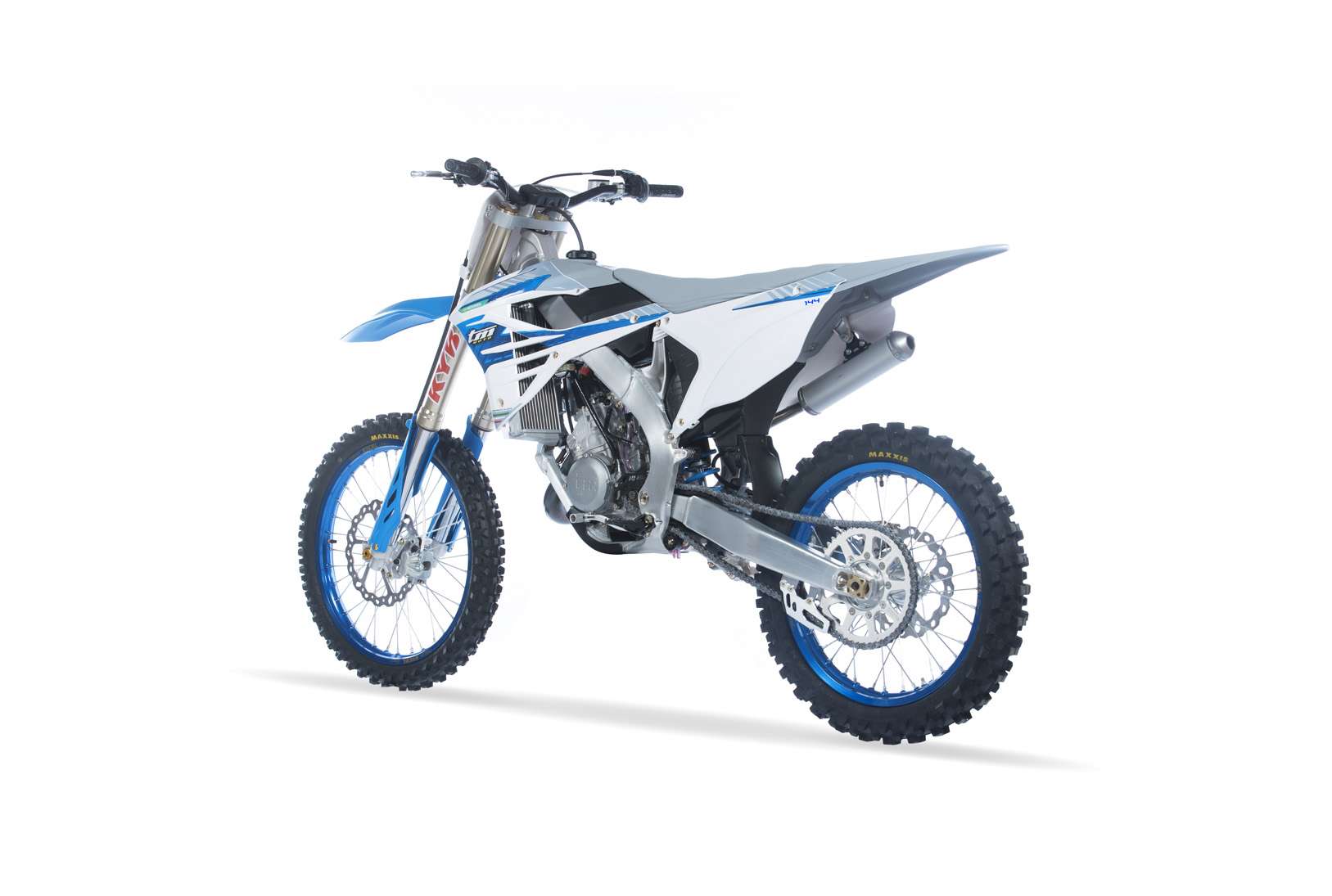

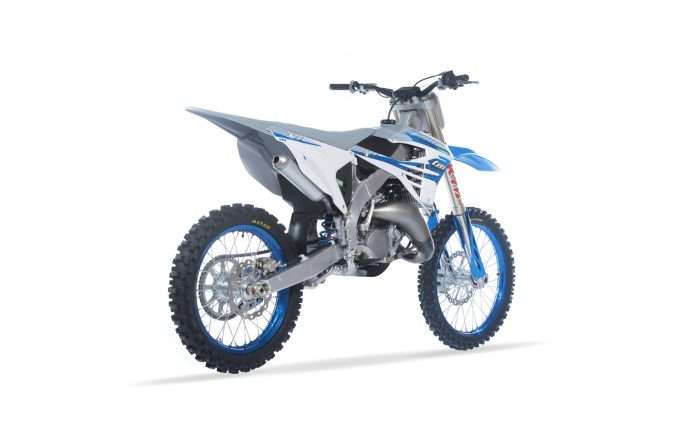

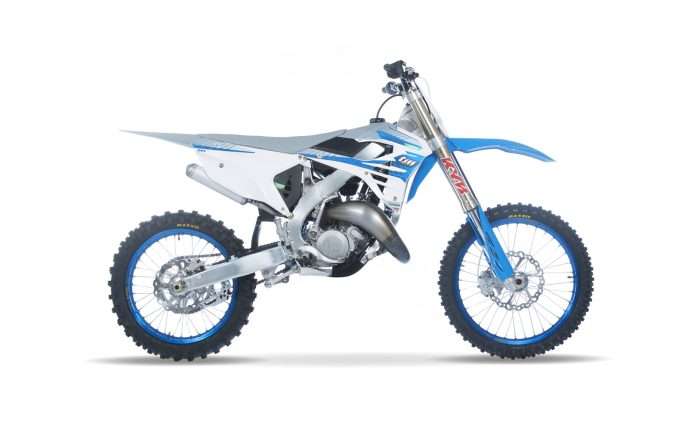

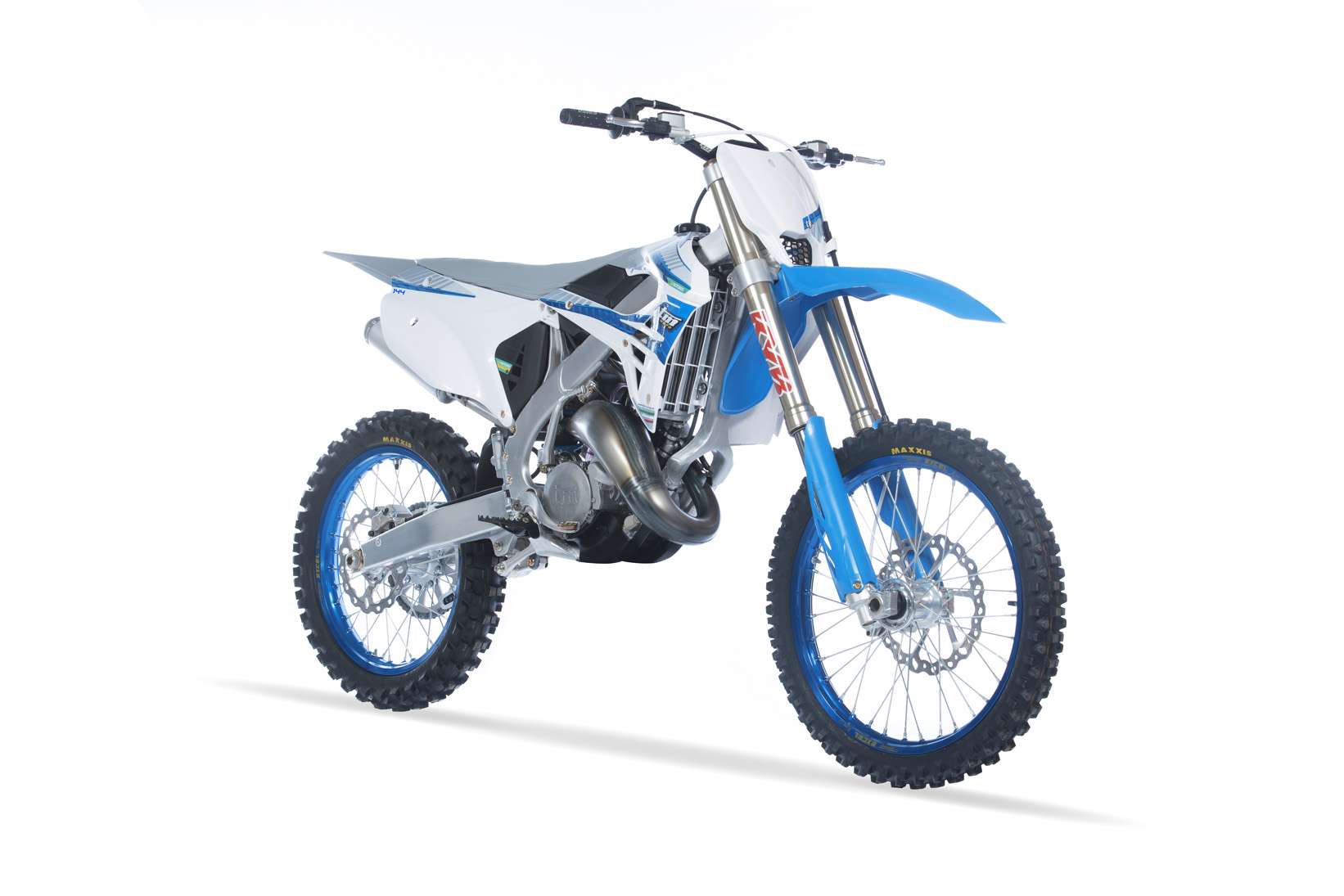

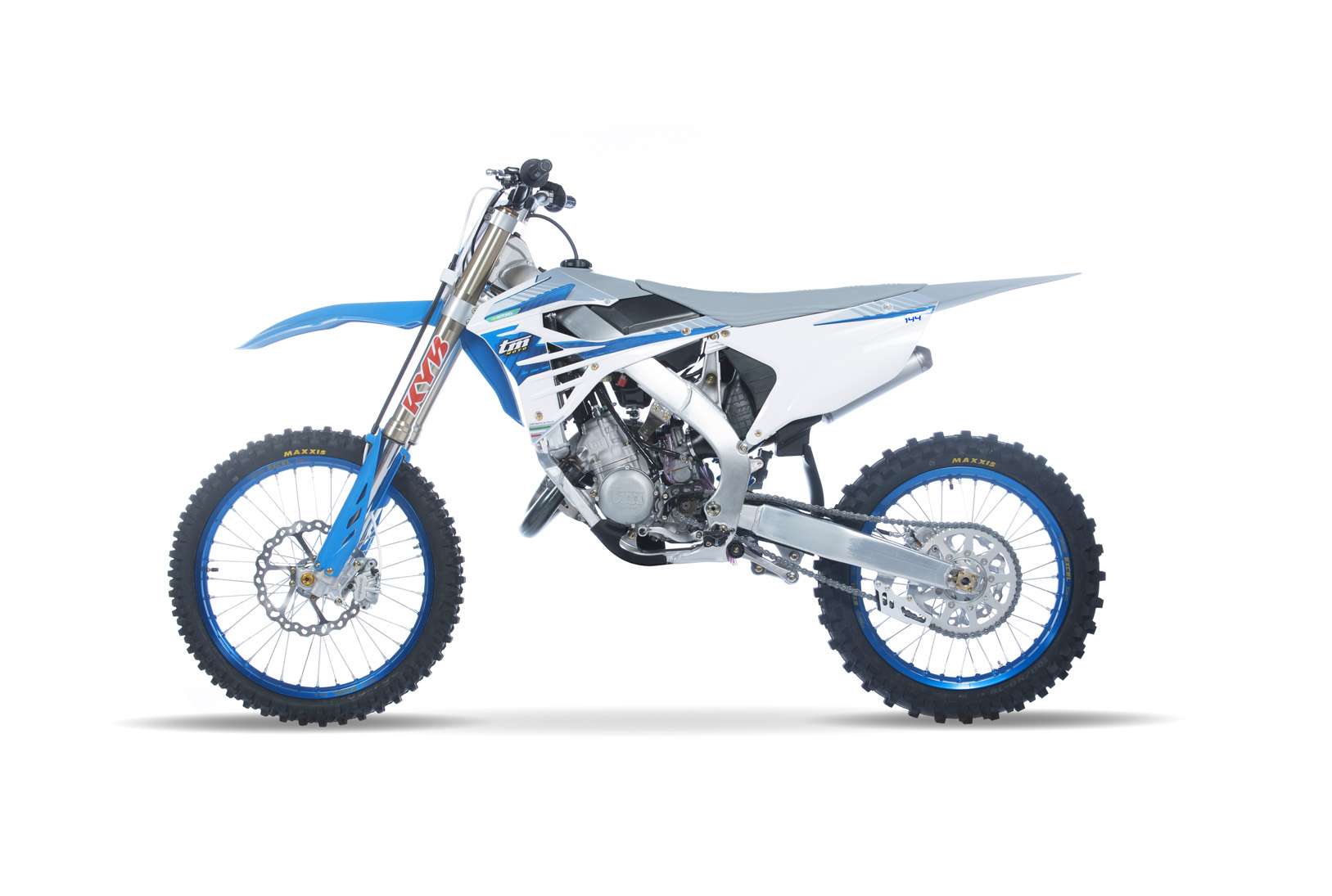

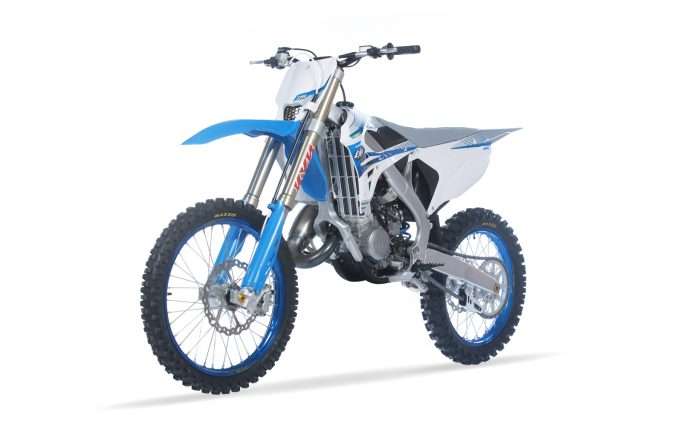

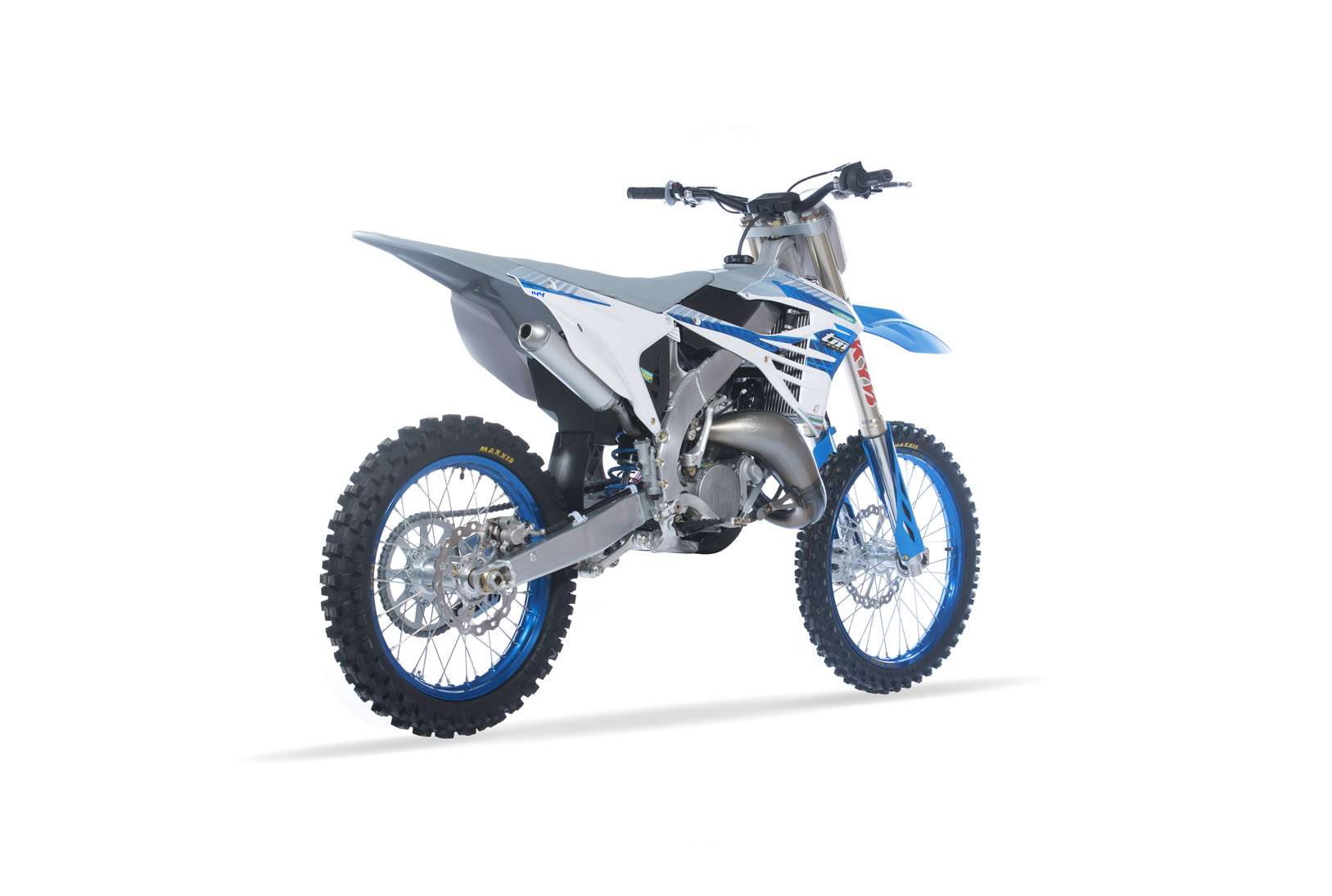

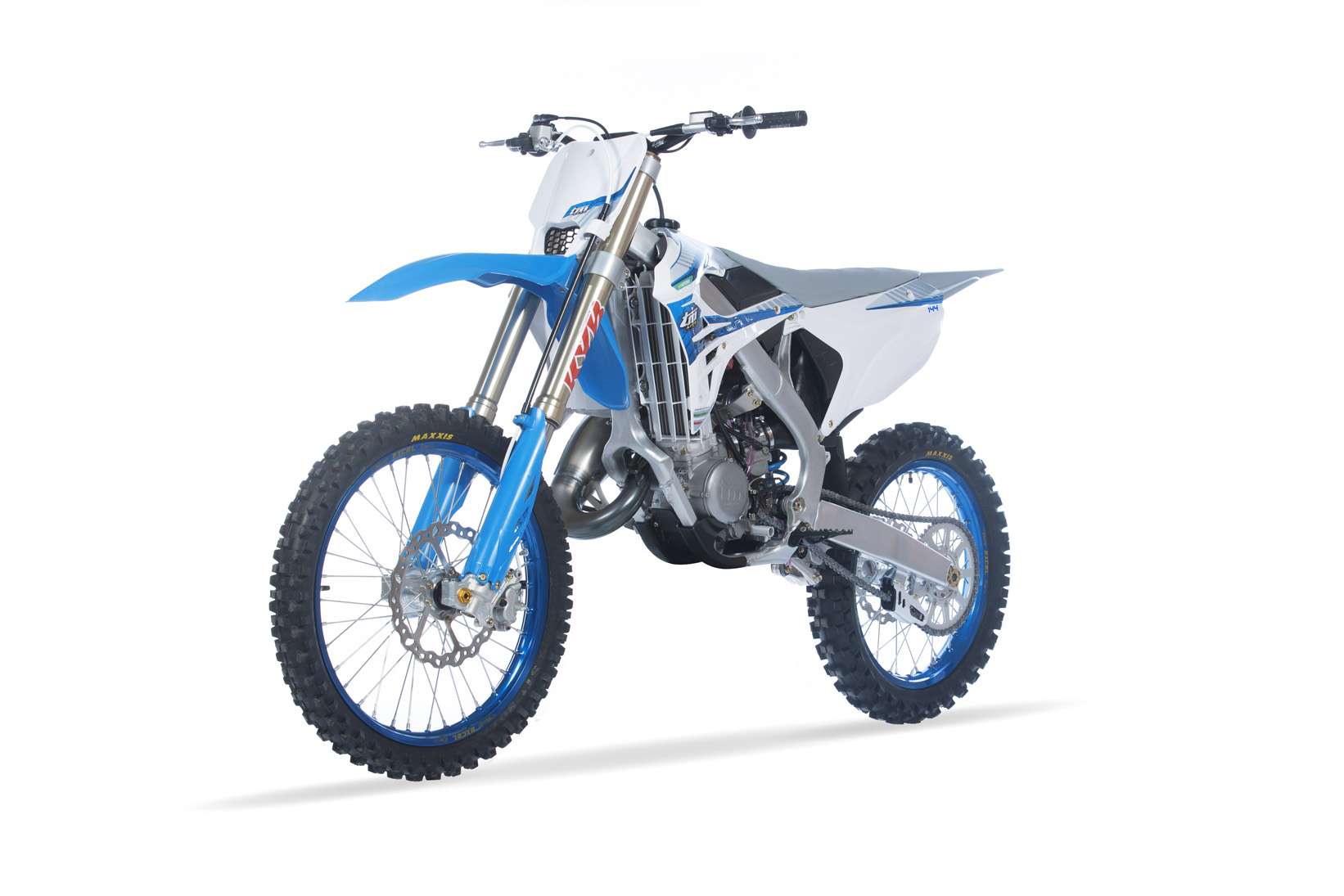

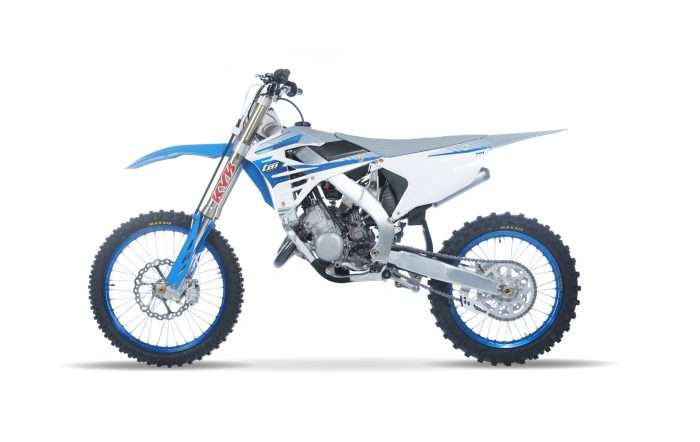

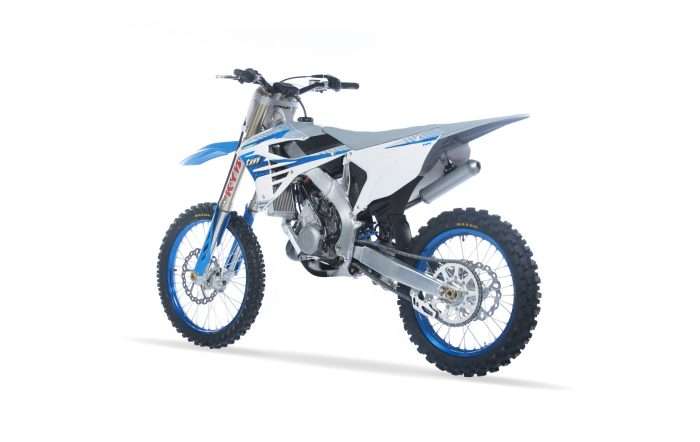

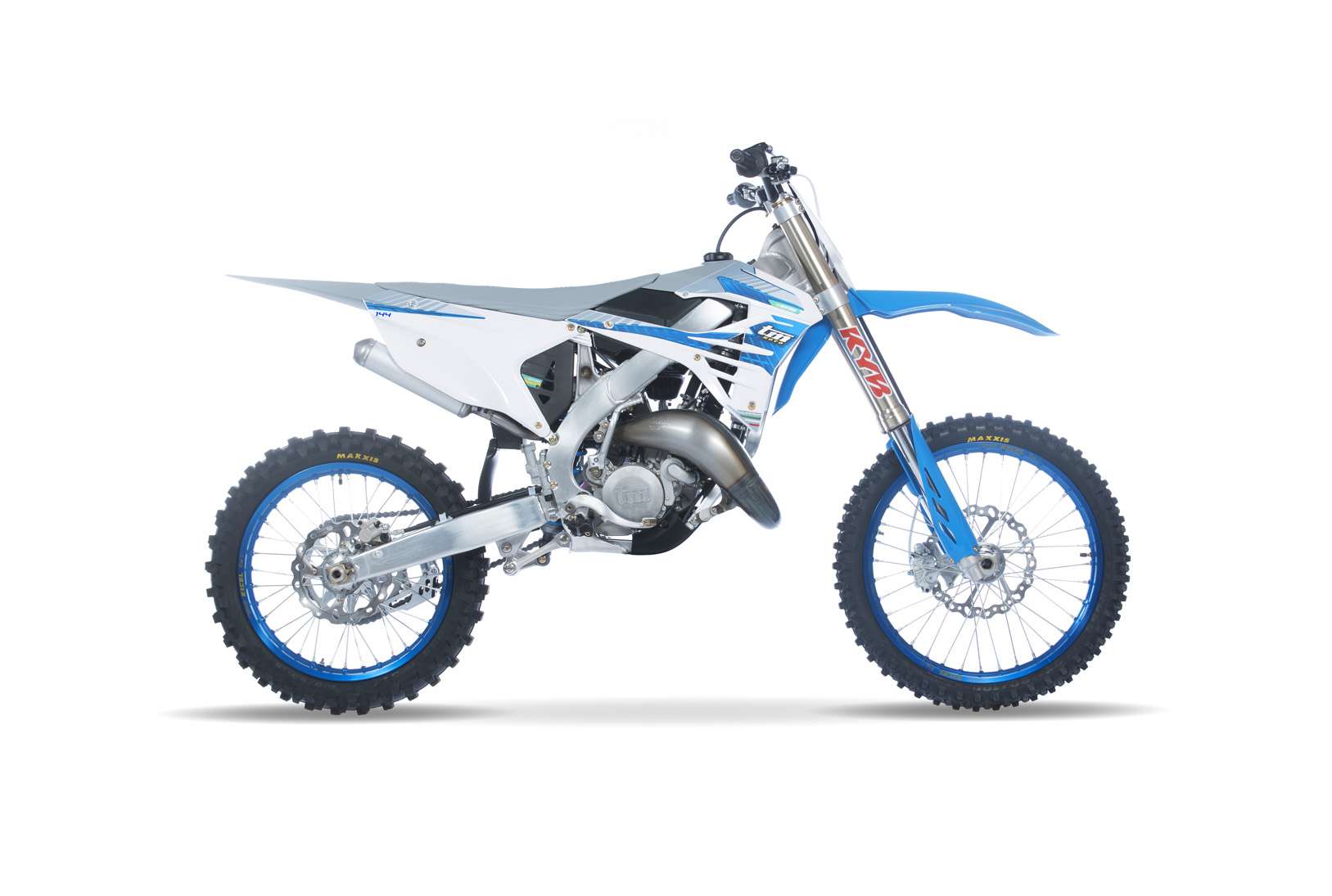

TM MX 144 2T
This model is a particular favourite of motocross fans.
Like all the MY 2023 bikes, it has been completely overhauled in terms of design and production.
A turning point that designated the realization of years of experimentation and research.
The images of the bikes are for demonstration purposes only, due to storage requirements some details may differ from the image.
TM MX 144 2T
This model is a particular favourite of motocross fans.
Like all the MY 2023 bikes, it has been completely overhauled in terms of design and production.
A turning point that designated the realization of years of experimentation and research.
The images of the bikes are for demonstration purposes only, due to storage requirements some details may differ from the image.
TM MX 144 2T
This model is a particular favourite of motocross fans.
Like all the MY 2023 bikes, it has been completely overhauled in terms of design and production.
A turning point that designated the realization of years of experimentation and research.
The images of the bikes are for demonstration purposes only, due to storage requirements some details may differ from the image.
TECHNICAL DETAILS
TM MX 144 2T
MOTORE
| CHANGE | 6 marce |
|---|---|
| STARTING | A pedale |
| RUN | 58.2 mm |
| ALESAGE | 56 mm |
| CLUTCH | Oil-bath multi-disc |
| CILINDRATE | 143.3 cm3 |
| ECU | Kokusan |
| CORPO FARFALLATO | --- |
| CARBURATOR | Keihin |
CICLISTICA
| WEIGHT (WITHOUT GASOLINE) | 91 Kg |
|---|---|
| TANK CAPACITY (APPROX.) | 9.0 Lt / 12 Lt |
| FRONT BRAKE DISK DIAMETER | 270 mm |
| REAR BRAKE DISK DIAMETER | 245 mm |
| FRONT BRAKE CALIPER | Brembo |
| REAR BRAKE CALIPER | Nissin |
| CHAIN | Regina GPX |
| FRAME CONSTRUCTION | Self-tempering aluminium deltabox type single beam with extruded, forged and microcast parts |
| FRONT SUSPENSION | Kayaba Ø 48 mm |
| MINIMUM HEIGHT FROM GROUND | 37 cm |
| REAR SUSPENSION | TM Racing |
| SEAT HEIGHT FROM GROUND | 99 cm |
| STEERING HEAD INCLINATION | 63° |
| FRONT EXCURSION | 310 mm |
| REAR EXCURSION | 300 mm |
The vehicles shown in the images may differ in some details from the production models and mount optional available only for a fee. All information relating to the volume of supply, appearance, services, weights and dimensions are not binding and are specified subject to typographical, compositional and printing errors. In the case of coated surfaces, there may be color differences due to normal process deviations. Subject to change without notice. The consumptions indicated refer to standard vehicles approved for road use at the time of delivery.
