TM MX 250 ES Fi 4T (2022)
A motorbike with unique characteristics, with high performance for its class, thanks to its perfect balance.
Indeed, particular care has been taken over weight distribution. The fuel tank is positioned in the rear, and the airbox at the front.

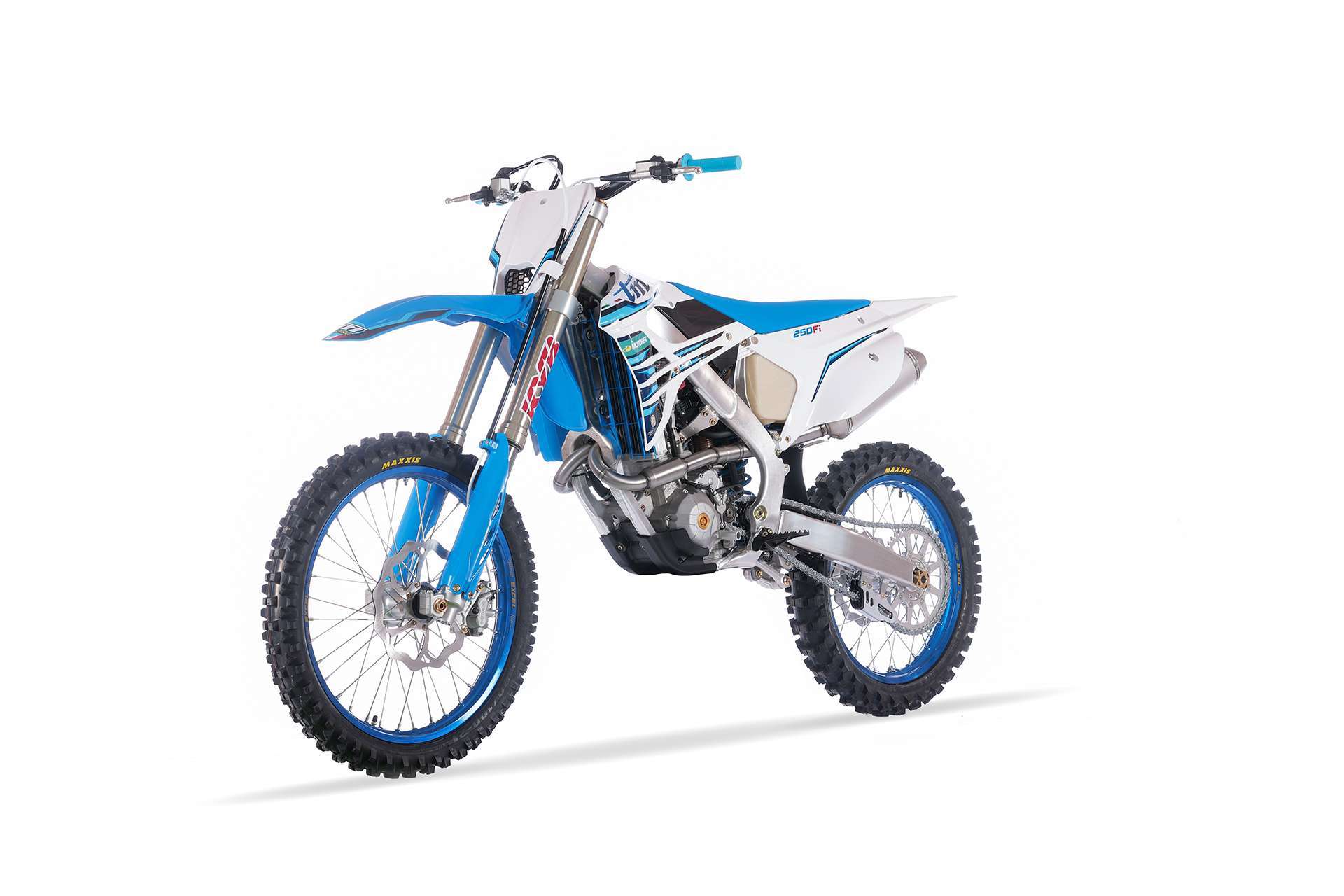

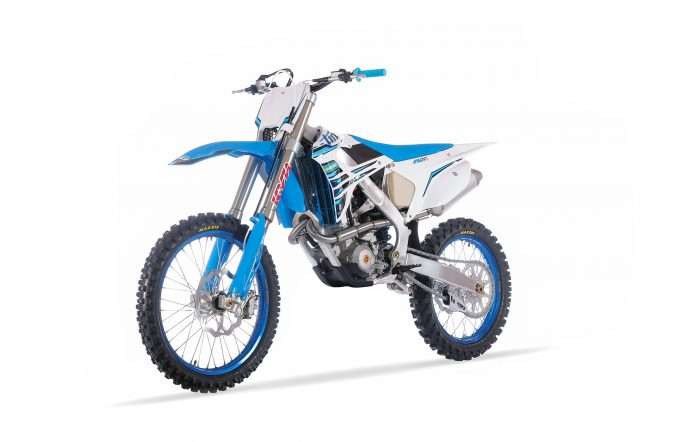

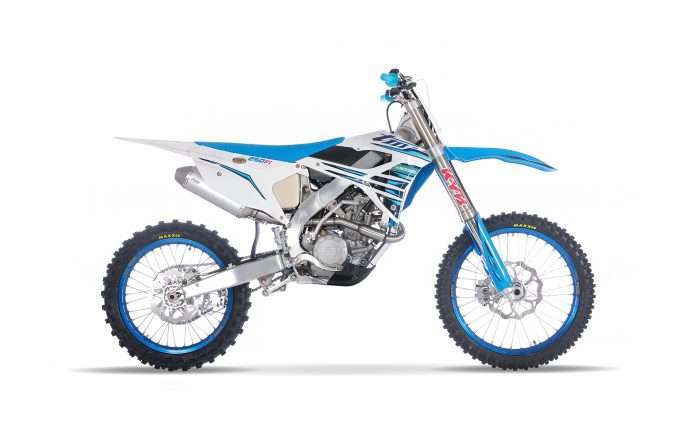

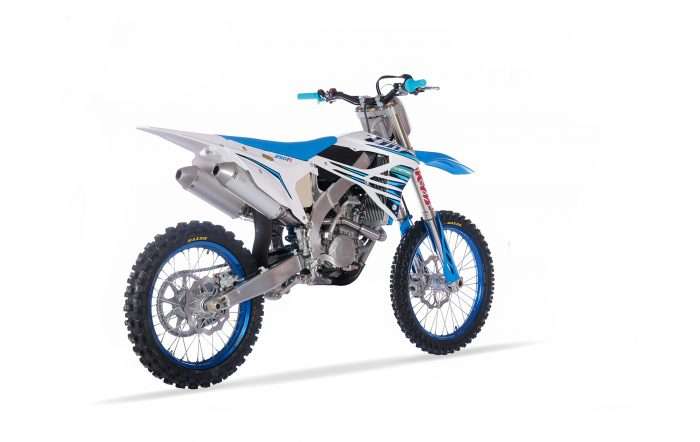

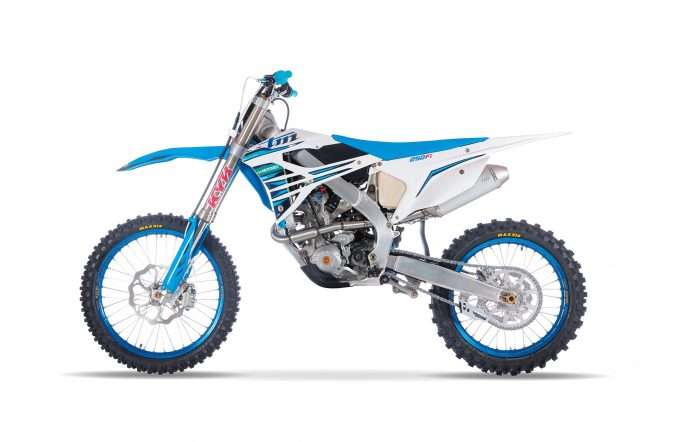

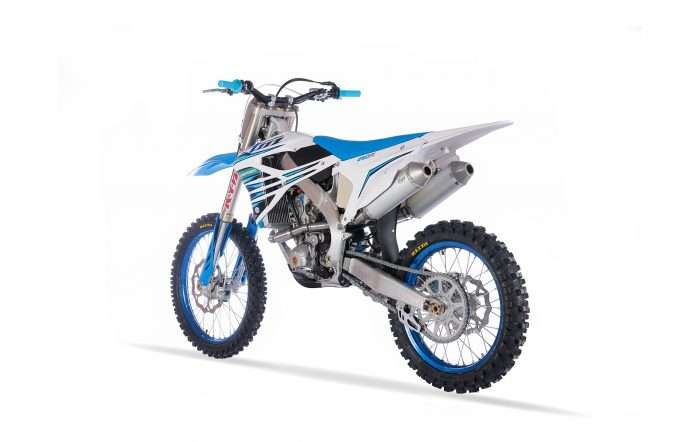

The images of the bikes are for demonstration purposes only, due to storage requirements some details may differ from the image.
TM MX 250 ES Fi 4T (2022)
A motorbike with unique characteristics, with high performance for its class, thanks to its perfect balance.
Indeed, particular care has been taken over weight distribution. The fuel tank is positioned in the rear, and the airbox at the front.
The images of the bikes are for demonstration purposes only, due to storage requirements some details may differ from the image.
TM MX 250 ES Fi 4T (2022)
A motorbike with unique characteristics, with high performance for its class, thanks to its perfect balance.
Indeed, particular care has been taken over weight distribution. The fuel tank is positioned in the rear, and the airbox at the front.
The images of the bikes are for demonstration purposes only, due to storage requirements some details may differ from the image.
TECHNICAL DETAILS
TM MX 250 ES Fi 4T (2022)
MOTORE
| CHANGE | 6 marce |
|---|---|
| STARTING | Elettrico |
| RUN | 53.6 mm |
| ALESAGE | 77 mm |
| CLUTCH | Oil-bath multi-disc |
| CILINDRATE | 249.6 cm3 |
| ECU | eMoticom |
| CORPO FARFALLATO | TM Racing |
| CARBURATOR | --- |
CICLISTICA
| WEIGHT (WITHOUT GASOLINE) | 102 Kg |
|---|---|
| TANK CAPACITY (APPROX.) | 7.5 Lt |
| FRONT BRAKE DISK DIAMETER | 270 mm |
| REAR BRAKE DISK DIAMETER | 245 mm |
| FRONT BRAKE CALIPER | Brembo |
| REAR BRAKE CALIPER | Nissin |
| CHAIN | Regina GPX |
| FRAME CONSTRUCTION | Self-tempering aluminium deltabox type single beam with extruded, forged and microcast parts |
| FRONT SUSPENSION | Kayaba Ø 48 mm |
| MINIMUM HEIGHT FROM GROUND | 35.5 cm |
| REAR SUSPENSION | TM Racing |
| SEAT HEIGHT FROM GROUND | 97 cm |
| STEERING HEAD INCLINATION | 63° |
| FRONT EXCURSION | 310 mm |
| REAR EXCURSION | 300 mm |
The vehicles shown in the images may differ in some details from the production models and mount optional available only for a fee. All information relating to the volume of supply, appearance, services, weights and dimensions are not binding and are specified subject to typographical, compositional and printing errors. In the case of coated surfaces, there may be color differences due to normal process deviations. Subject to change without notice. The consumptions indicated refer to standard vehicles approved for road use at the time of delivery.
