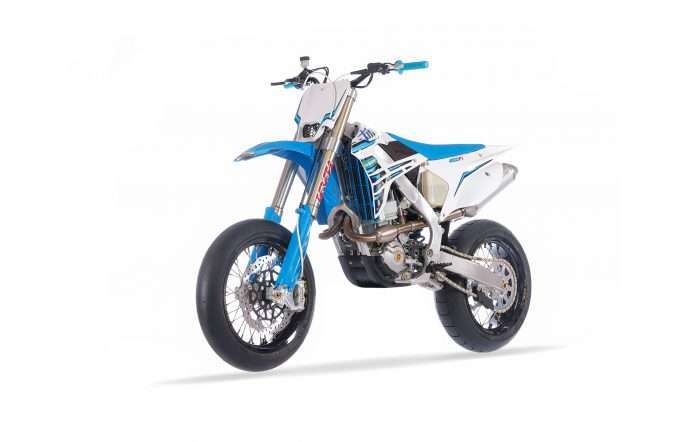

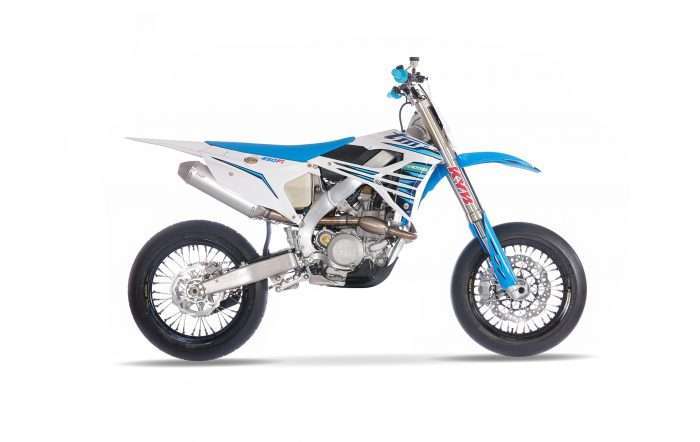

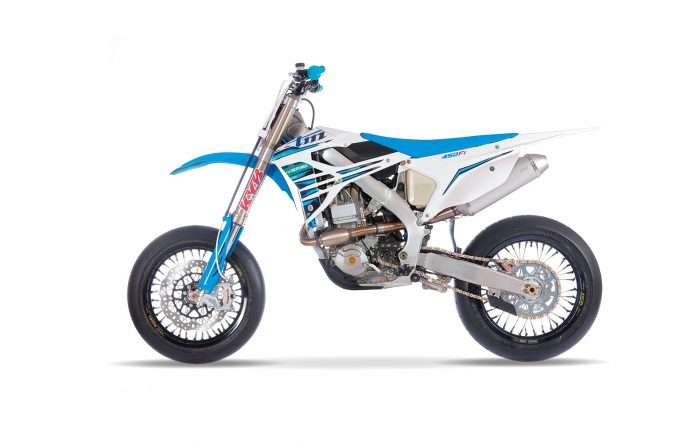

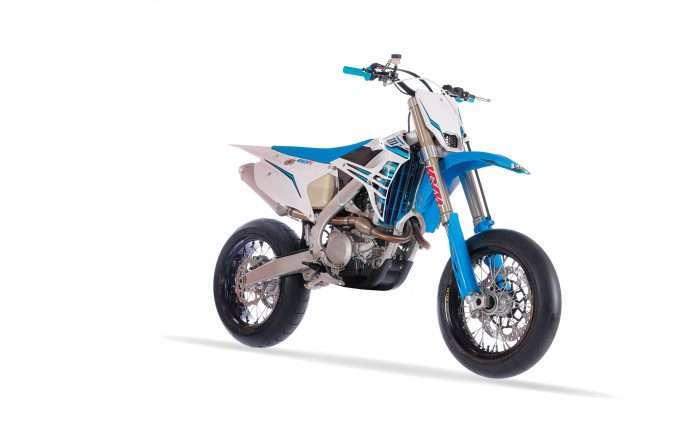

TM SMK 450 ES Fi 4T (2022)
The queen of “race-ready” bikes, a real benchmark in the world of motard for decades.
The parts are already set up and ideal for use in competitions. A faithful replica of the bikes our champion riders take to the track in every race.
The images of the bikes are for demonstration purposes only, due to storage requirements some details may differ from the image.
TM SMK 450 ES Fi 4T (2022)
The queen of “race-ready” bikes, a real benchmark in the world of motard for decades.
The parts are already set up and ideal for use in competitions. A faithful replica of the bikes our champion riders take to the track in every race.
The images of the bikes are for demonstration purposes only, due to storage requirements some details may differ from the image.
TM SMK 450 ES Fi 4T (2022)
The queen of “race-ready” bikes, a real benchmark in the world of motard for decades.
The parts are already set up and ideal for use in competitions. A faithful replica of the bikes our champion riders take to the track in every race.
The images of the bikes are for demonstration purposes only, due to storage requirements some details may differ from the image.
TECHNICAL DETAILS
TM SMK 450 ES Fi 4T (2022)
MOTORE
| CHANGE | 6 marce |
|---|---|
| STARTING | Elettrico |
| RUN | 63.4 mm |
| ALESAGE | 95 mm |
| CLUTCH | Oil-bath multi-disc |
| CILINDRATE | 449 cm3 |
| ECU | eMoticom |
| CORPO FARFALLATO | TM Racing |
| CARBURATOR | --- |
CICLISTICA
| WEIGHT (WITHOUT GASOLINE) | 116 Kg |
|---|---|
| TANK CAPACITY (APPROX.) | 7.5 Lt |
| FRONT BRAKE DISK DIAMETER | 305 mm |
| REAR BRAKE DISK DIAMETER | 245 mm / 205 mm |
| FRONT BRAKE CALIPER | Brembo (M34) |
| REAR BRAKE CALIPER | Nissin |
| CHAIN | Regina GPX |
| FRAME CONSTRUCTION | Self-tempering aluminium deltabox type single beam with extruded, forged and microcast parts |
| FRONT SUSPENSION | Kayaba Ø 48 mm |
| MINIMUM HEIGHT FROM GROUND | 32.1 cm |
| REAR SUSPENSION | TM Racing |
| SEAT HEIGHT FROM GROUND | 94 cm |
| STEERING HEAD INCLINATION | 63° |
| FRONT EXCURSION | 280 mm |
| REAR EXCURSION | 270 mm |
The vehicles shown in the images may differ in some details from the production models and mount optional available only for a fee. All information relating to the volume of supply, appearance, services, weights and dimensions are not binding and are specified subject to typographical, compositional and printing errors. In the case of coated surfaces, there may be color differences due to normal process deviations. Subject to change without notice. The consumptions indicated refer to standard vehicles approved for road use at the time of delivery.
